Question 1

How to remove and refit the rear bumper on Audi 100?

Accepted Answer

In order to remove the bumper on saloon models, unattached screws that hold the left and right-hand wheelarch liners to the bumper, then disconnect each liner to the bumper. Lift the carpet to remove the bumper mounting bolts by lifting the boot lid. Losen and loosen the left and right-hand mounting bolts, then, helped along, unclip the ends of the bumper to the side brackets and position the bumper assembly backwards and off the car. Check bumper mountings on whether they are damaged or not and replace them where necessary. In the case of estate models, unlock the tailgate, unlock the catches and fold the luggage compartment floor panel. Installation of the bumper box involves removing the retaining screws and removing the left and right side trim panels to reveal the bumper mounting bolts. Unscrew and take away the left- and right-hand mounting bolts, and, with some help, unclip the bumper ends out of the side fittings, and work the bumper assembly backward and out of the vehicle, making sure to shove downwards and pull forwards so that the ends are disengaged out of their fittings. Once more, check the bumper mountings to see whether they are damaged and replace them when required. Refitting To refit the bumper, the reversal of the unattaching process involves clipping the ends of the bumper into the base of each side bracket then clipping them into the top and verifying that they are correctly positioned before attaching the mounting bolts to the required torque.

Question 2

How to remove and install front and rear bumpers on Audi A4?

Accepted Answer

Front and rear bumpers are made of fascia or bumper cover and metal structural beam. In order to lift the front bumper cover, lift the vehicle, and hold it steady with jackstands, lift the splash shield underneath the engine. To remove the upper mounting fasteners, loosen the hood, remove the front part of the inner fender splash shield and pull it back. On both front wheelwells, loosen the fasteners attaching the bumper cover to both fenderwalls and un clip the rear end of the cover. Take the retaining tab at the bottom in the front side with the screwdriver in order to remove the lower grilles on both sides. In case of fog lights, they should be removed and the ambient temperature sensor disconnected should it have one. From underneath, unscrew two retaining bumper bolts, and push the bumper assembly out of the car, disconnecting any headlight washer hoses in the process. In case the bumper cover should be detached off the metal bumper, loosen catches and fasteners. To install, undo all the steps of removal, making sure that all fasteners are loose fitting before tightening. In the case of the rear bumper cover, the first step is to remove the fasteners that hold the liner together at the bottom of the rear. Fold up the wheelwell liner and undo the fasteners that are holding the bumper cover. Fold the floor covering aside in the trunk area, remove the side storage compartment and navigation tuner (where fitted) and remove the mounting nuts and support bracket bolts. On Avant models, the floor sill plate, and side trim panels are removable to gain access to the support bracket bolts. The bumper cover assembly should be carefully pulled out of the back of the car, one locking tab at a time. The fasteners can be removed to take out the bumper support brackets. To install, undo all the steps of removal, making sure that all fasteners are loose fitting before tightening.

Genuine Audi Bumper

227 Bumpers found

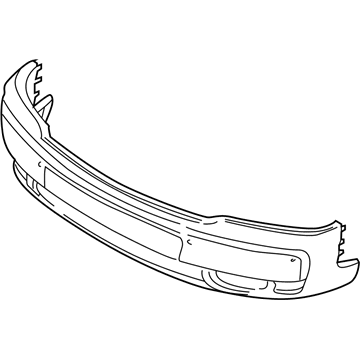

Audi Bumper Cover Part Number: 8P4-807-303-X7Z

Audi Bumper Cover Part Number: 8P4-807-303-Y7W

Audi Bumper Cover Part Number: 8P4-807-303-Y9B

Audi Bumper Cover Part Number: 8P4-807-303-Z7L

Audi Bumper Cover Part Number: 8P4-807-303-Z9Y

Audi Bumper Cover Part Number: 8P4-807-303-H-GRU

Audi Bumper Cover Part Number: 4D0-807-497-AA-GRU

Audi Bumper Cover Part Number: 8E5-807-301-L-GRU

Audi Bumper Cover Part Number: 4D0-807-497-AB-GRU

Audi Bumper Cover Part Number: 4B0-807-103-AH-GRU

Audi Bumper Cover Part Number: 8E9-807-301-M-GRU

Audi Bumper Cover Part Number: 8E9-807-301-L-GRU

Audi Bumper Cover Part Number: 8E5-807-301-AF-GRU

Audi Bumper Cover Part Number: 8E9-807-301-AH-GRU

Audi Bumper Cover Part Number: 8E5-807-301-M-GRU

Audi Bumper Cover Part Number: 4B0-807-103-AN-GRU

Audi Bumper Cover Part Number: 4Z7-807-103-GRU

Audi Bumper Cover Part Number: 8E5-807-301-AE-GRU

Audi Bumper Cover Part Number: 8E9-807-301-AG-GRU

Audi Bumper Cover Part Number: 4Z7-807-303-B-GRU

Audi Bumper
