Genuine Audi A3 Fuel Pump
Gas Pump- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
14 Fuel Pumps found

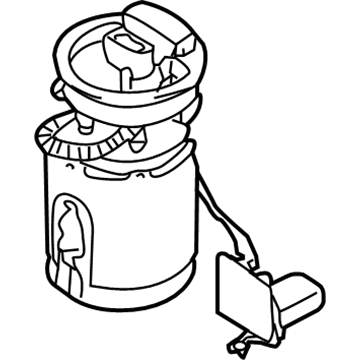

Audi A3 Fuel Pump Assembly Part Number: 1K0-919-050-AB
$153.82 MSRP: $215.44You Save: $61.62 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Assembly Part Number: 5Q0-919-050-BA
$138.25 MSRP: $193.64You Save: $55.39 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Assembly Part Number: 5Q0-919-087-AH
$290.49 MSRP: $406.85You Save: $116.36 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Assembly Part Number: 1K0-919-051-DB
$290.49 MSRP: $406.85You Save: $116.36 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Assembly Part Number: 1K0-919-051-AR
$318.61 MSRP: $446.24You Save: $127.63 (29%)Ships in 1-2 Business DaysAudi A3 Fuel Pump Assembly Part Number: 1K0-919-051-DE
$318.61 MSRP: $446.24You Save: $127.63 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Assembly Part Number: 5Q0-919-051-BH
$315.48 MSRP: $441.86You Save: $126.38 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Part Number: 5N0-906-129-B
$571.19 MSRP: $799.99You Save: $228.80 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Assembly Part Number: 5WA-919-051-P
$399.83 MSRP: $559.98You Save: $160.15 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Part Number: 06N-127-025-E
$178.06 MSRP: $249.38You Save: $71.32 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Part Number: 06F-127-025-F
$170.37 MSRP: $238.62You Save: $68.25 (29%)Ships in 1-2 Business DaysAudi A3 Fuel Pump Part Number: 06K-127-026-C
$515.27 MSRP: $721.68You Save: $206.41 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump Part Number: 06H-127-025-Q
$436.21 MSRP: $610.94You Save: $174.73 (29%)Ships in 1-2 Business DaysAudi A3 Fuel Pump Part Number: 04L-130-755-E
$585.81 MSRP: $820.47You Save: $234.66 (29%)Ships in 1-2 Business Days
Audi A3 Fuel Pump
Audi A3 Fuel Pump passes gasoline from the rear tank to the engine to ensure that the mixture is lit at the right time and makes the hatchback active enough to ensure the Audi runs smoothly. Historical generations employed a mechanical Fuel Pump that was driven on the camshaft by a lever through which the fuel was forced through check valves to feed a carburetor at about 6 to 15 psi. As the change to electronic injection occurred, Audi implemented an in-tank electric Fuel Pump which revolves at high speed, is cool when immersed, and develops 40 to 60 psi demanded by injectors. An electronic relay will only supply voltage when called by the control unit, halts current during a crash, and loads during idle time. The two versions strain and pressurize the fuel, but the electric variant provides much higher pressure and also the level-sending float is included with the Fuel Pump as a single module to allow space saving in many subsequent A3 assemblies. The flow requirements are still governed by the fact that about 0.5 pounds of fuel per horsepower per hour is required, similar to the case with the stock unit, and the owner can guess whether the stock unit would maintain pace by dividing that rate by the six-pound weight of gasoline per gallon. Whenever the engine turns over without starting, a few seconds of listening to the tiny buzz of the pump or watching the voltage on the battery connector quickly identifies the problem. Careful Audi drivers who react to these indicators ensure performance and longevity of their Audi.
Choose original equipment manufacturer Fuel Pump for great performance and strong durability. They use Audi's official craftsmanship and high-grade materials, and meet strict quality standards. Are you looking for quality Fuel Pump at a good price? Come to our online store. We carry a wide range of genuine parts for your Audi A3 and the prices are competitive. Each part comes with the manufacturer's warranty. You can install with confidence and get steady results. Over time, you'll save money and avoid hassle. Keep your maintenance simple and protect your vehicle with OEM parts. Get the quality your A3 needs now.
Audi A3 Fuel Pump Parts and Q&A
- Q: What precautions should be observed before working on the Fuel Level Sensor and Fuel Pump components for Petrol engines on Audi A3?A:Note the precautions that have to be observed before working on any component in the fuel system. The fuel lift pump and gauge sender unit are assembled as one unit, they are fitted on the top of the fuel tank and the access is under the cushion on the rear seat in the floor panel. To eliminate the unit, make sure that the car is parked on a flat surface, pull off the battery negative lead, and place it away off the terminal. Take out the back seat cushion and take up the section of the carpet on the floor panel. Unclip and detach the connector block of wiring, then pry up the cover to un-connect the wiring to the lift pump/gauge sender unit. Pad the space about the supplying and returning hoses of fuel with rags to save any spilting fuel and then release the hose clips and disconnect them, labeling the hoses so that they can be refitted correctly. Record the placement of the alignment marks, unscrew and carefully take off the securing ring with an appropriate tool and remove the lift pump/gauge sender unit, letting out the excess fuel. Look at the float to confirm that it is free of punctures and fuel ingress, ensure that the fuel pick-up moves freely and look at the rubber seal to tell whether it is fatigued. Wipe the sender unit wiper and track and if required, disassemble the sender unit by loosening the wires and screws, and removing the sender unit. It is possible to remove the unit top plate unscrewing the plastic labels and reclaiming the spring. To remove and refit, the same procedure must be followed in reverse, but precautions must be taken not to strain the float arm, lubricate the rubber seal so it fits more easily, position the arrow markings, reconnect the fuel hose to the right ports and ensure every pipe is securely clipped before starting the engine to check that it is free of fuel leaks.
- Q: How to disconnect and replace the tandem fuel pump while ensuring the engine management ECU's fault code is addressed on Audi A3?A:Deactivation of the central connector to the unit injectors could result in a fault code being recorded by the engine management ECU and will only be able to be removed by an Audi dealer or a specialist who is equipped with appropriate facilities. The tandem fuel pump is a vacuum pump and a fuel lift pump of the braking system and the fuel injection system respectively, mounted on the left-hand end of the cylinder head. The first step is to unfasten the engine top cover followed by unscrewing the hose the engine fuel filter marked as white and blue, emptying all the fuel into an appropriate container. The second step is to take away the air cleaner assembly and air ducting with air mass meter. Detach the retaining clip, where applicable and deconnect the brake servo pipe with the tandem pump and then deconnect the fuel supply and the return hoses with the tandem pump. Loose four retaining bolts to take out the tandem pump in the cylinder head and reclaimed and abandoned the gasket, a new one is necessary to re-integrate. Refitting Refit these parts in reverse, with a new gasket and tighten the mounting bolts to the correct torque, making sure that the pump pinion fits into the drive slot in the camshaft. To prime the tandem pump with fuel it is recommended to disconnect the fuel filter return hose labeled with blue and attach it with a hand vacuum pump and start the pump till the fuel is seen to emerge through the return hose, without vacuuming any fuel off the pump and then reconnect the return hose back to the fuel filter. Lastly, Audi dealer/properly equipped specialist is to interrogate and delete the fault memory of the engine management ECU.
