How to use OE catalog
3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

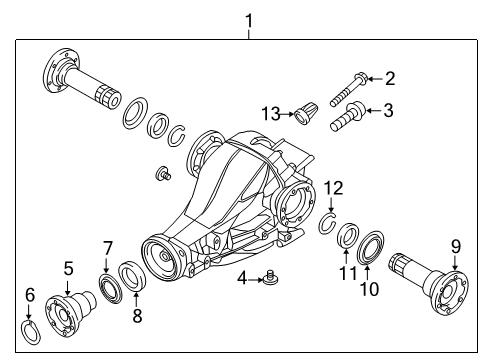

- 1.Rear Suspension - Axle & Differential (2.0L,2012-17)
- 2.Rear Suspension - Axle & Differential (2.0L,With AWD,With Code KBU)
- 3.Rear Suspension - Axle & Differential (2.0L,With AWD,Without Code KBU)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
0BC-500-043-L
Differential Assembly- Part Notes: 2.0L, 2012-17, Auto Transmission;With AWD, 2.0L, Without Code KBU, Code KRR
$7258.84 $6046.621 - 1
$6482.13 $5399.611 - 1
$6482.12 $5399.611 - 1
$6482.12 $5399.611
- 2
N-911-384-02
Differential Assembly Bolt- Part Notes: 2.0L, 2012-17, M8X65;With AWD, 2.0L, Without Code KBU, M8X65
$5.37 $3.441 - 2
$2.06 $1.321
- 3
N-106-403-01
Differential Assembly Bolt- Part Notes: 2.0L, 2012-17, M12X100;With AWD, 2.0L, Without Code KBU, M12X1.5X100
$12.60 $8.061 - 3
$10.25 $6.571
- 4
$37.18 $23.241 - 4
$14.88 $9.521
- 5
$523.33 $373.661 - 5
$570.82 $407.561
- 6
$15.22 $9.741 - 6
$17.94 $11.481
- 7
$9.79 $6.261 - 7
$15.22 $9.741
- 8
$55.15 $40.041 - 8
$39.96 $24.981
- 9
08V-525-289-C
Stub Shaft- Part Notes: With AWD, 2.0L, With Code KBU
- Location: Driver Side;Passenger Side
$633.32 $452.191 - 9
0AR-525-356-C
Stub Shaft- Part Notes: 2.0L, 2012-17;With AWD, 2.0L, Without Code KBU
- Location: Driver Side;Passenger Side
$431.81 $308.321
- 10
08V-525-171-A
Stub Shaft Ring- Part Notes: With AWD, 2.0L, With Code KBU
- Location: Driver Side;Passenger Side
$18.45 $11.811 - 10
0AR-525-375
Stub Shaft Ring- Part Notes: 2.0L, 2012-17;With AWD, 2.0L, Without Code KBU
- Location: Driver Side;Passenger Side
$9.79 $6.261
- 11
$55.00 $39.931 - 11
0AR-409-399-B
Stub Shaft Seal- Part Notes: 2.0L, 2012-17;With AWD, 2.0L, Without Code KBU
- Location: Driver Side;Passenger Side
$34.18 $21.361
- 12
012-409-413
Stub Shaft Lock Ring- Part Notes: 2.0L, 2012-17;With AWD, 2.0L, Without Code KBU
- Location: Driver Side;Passenger Side
$0.52 $0.331 - 12
$52.48 $38.101
- 13
$27.23 $17.031
- 13
N-012-292-2
Stub Shaft Lock Ring- Part Notes: With AWD, 2.0L, With Code KBU
- Location: Driver Side;Passenger Side
$9.10 $5.821
$34.58 $21.611
OEM 2013 Audi A5 Quattro Parts for Axle & Differential - Rear
OEM parts are designed, manufactured, and tested according to the official factory standards of Audi. They undergo rigorous production stages to achieve high levels of precision and quality. If you require new Axle & Differential - Rear, also known as 2013 Audi A5 Quattro Differential, Axle Beam Mount, Axle Shaft, Differential Mount, our website offers a reliable selection. We provide a wide array of quality, OEM 2013 Audi A5 Quattro parts at competitive market prices. Moreover, we also provide a warranty and deliver orders very fast.
