Engine & Trans Mounting
2013 Audi A5 Quattro Engine Mount, Differential Mount, Front Cross-Member
Currently shopping for
2013 Audi A5 Quattro
Change VehicleCategories Close X
Currently selected
Engine
Other Categories
A/C & Heating
Air & Fuel Delivery
Belts & Cooling
Body & Hardware
Brakes
Charging & Starting
Driveline & Axles
Electrical
Emission Control & Exhaust
Headlights & Lighting
Interior & Exterior Trim
Maintenance & Lubrication
Steering
Suspension
Transmission
How to use OE catalog
4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Engine / Transaxle - Engine & Trans Mounting (2.0L,2013-14,Without AWD)
- 2.Engine / Transaxle - Engine & Trans Mounting (2.0L,2013-17,Auto Transmission)

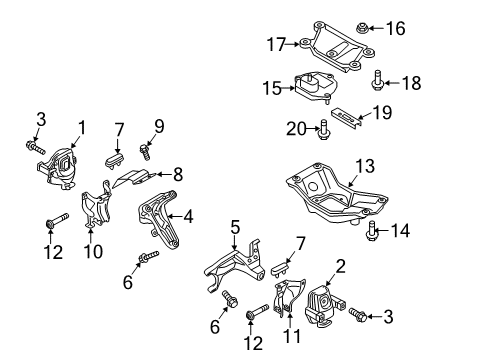

- 3.Engine / Transaxle - Engine & Trans Mounting (2.0L,2013-17,Manual Transmission)

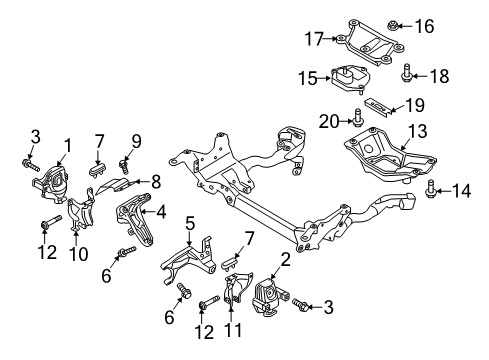

- 4.Engine / Transaxle - Engine & Trans Mounting (2.0L,2013-17,With AWD)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
8R0-199-381-AK
Motor Mount- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Passenger Side
$570.00 $406.981 - 1
$570.00 $406.981
- 2

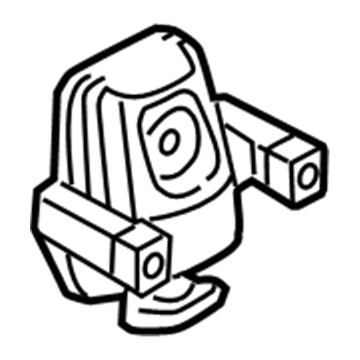

8R0-199-381-C
Motor Mount- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Driver Side
$569.99 $406.981 - 2
$569.99 $406.981
- 3
N-911-489-01
Motor Mount Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Driver Side;Passenger Side
$6.90 $4.421
- 4

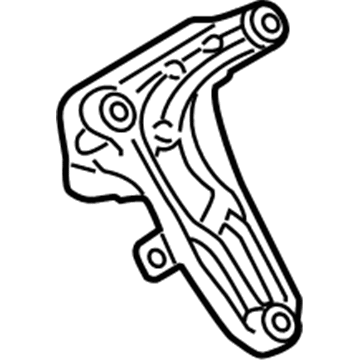

8K0-199-308-BD
Support- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Passenger Side
$384.99 $274.891
- 5

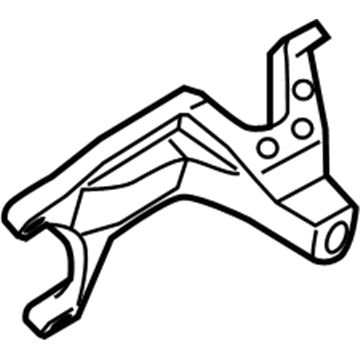

8K0-199-307-CC
Support- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Driver Side
$336.66 $240.381
- 6
N-107-026-03
Support Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Driver Side;Passenger Side
$1.15 $0.741
- 7
8K0-199-339-N
Cushion- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Driver Side;Passenger Side
$9.74 $6.231
- 8
8K0-199-388-BE
Cover Plate- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Passenger Side
$58.33 $42.351
- 9
N-907-246-03
Cover Plate Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
$4.12 $2.641
- 10

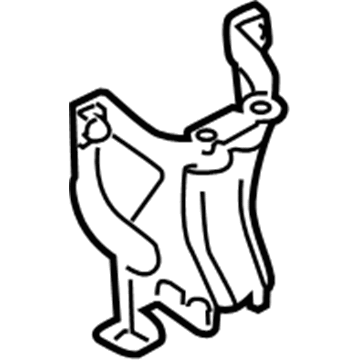

4G0-399-378-J
Retainer Plate- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Passenger Side
$34.46 $21.541
- 11
8K0-399-059-H
Retainer Plate- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
- Location: Driver Side
$90.00 $64.261
- 12
N-910-639-01
Retainer Plate Bolt- Part Notes: 2.0L, Without AWD, 2013-14
- Location: Driver Side;Passenger Side
$7.69 $4.921 - 12
N-911-744-01
Retainer Plate Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17
- Location: Driver Side;Passenger Side
$5.13 $3.281
- 13
4H0-399-263-AK
Transmission Crossmember- Part Notes: 2.0L, Auto Transmission, 2013-17, To 7/19/2015;2.0L, With AWD, 2013-17
$598.98 $427.671 - 13
$598.98 $427.671 - 13
$705.00 $503.371
- 14
N-912-097-01
Transmission Crossmember Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
$1.48 $0.951
- 15
8K0-399-151-BD
Transmission Mount- Part Notes: 2.0L, Manual Transmission, 2013-17;2.0L, Without AWD, 2013-14
$221.48 $158.141 - 15
8K0-399-151-DB
Transmission Mount- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, With AWD, 2013-17
$206.67 $147.561
- 16
N-911-574-01
Transmission Mount Nut- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
$5.13 $3.281
- 17
$102.16 $72.941 - 17
8K0-399-115-BS
Transmission Support- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, With AWD, 2013-17
$102.16 $72.941 - 17$105.01 $74.971
- 17
$102.16 $72.941
- 18
N-106-718-01
Transmission Support Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
$5.13 $3.281
- 19
$15.89 $10.161 - 19
$35.98 $22.491
- 20
N-107-247-01
Stop Bolt- Part Notes: 2.0L, Auto Transmission, 2013-17;2.0L, Manual Transmission, 2013-17;2.0L, With AWD, 2013-17;2.0L, Without AWD, 2013-14
$5.15 $3.301
