Diagram (1 of 1): Front Suspension - Carrier & Front Axles

2011 Audi R8 Front Axle & Carrier Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1

0AZ-409-505-A
Differential Assembly
$7814.71 $6509.65
1
Add To Cart

2
N-016-029-3
Plug
$18.58 $11.89
1
Add To Cart

3
017-525-093
Bleeder Valve
$27.23 $17.03
1
Add To Cart

4
01R-525-095
Bleeder Valve Sleeve
$29.98 $18.74
1
Add To Cart

5
WHT-002-405
Gasket
$27.78 $17.36
1
Add To Cart

6
02X-409-400-A
Seal
Location: Passenger Side
$118.49 $84.60
1
Add To Cart
6
0AZ-409-400
Seal
- Location: Driver Side
$78.49 $56.98
1
Add To Cart

7
0AZ-409-355-A
Flange
- Location: Driver Side;Passenger Side
$1115.52 $862.86
1
Add To Cart

8
0AZ-301-315
Carrier
$524.98 $374.84
1
Add To Cart

9
420-599-285
Front Mount
$303.33 $216.58
1
Add To Cart

10
N-106-872-02
Front Mount Screw
$6.68 $4.28
1
Add To Cart

11

8E0-599-257-K
Front Mount Bushing
$51.67 $37.51
1
Add To Cart

12

N-106-403-01
Front Mount Bolt
$12.60 $8.06
1
Add To Cart

13

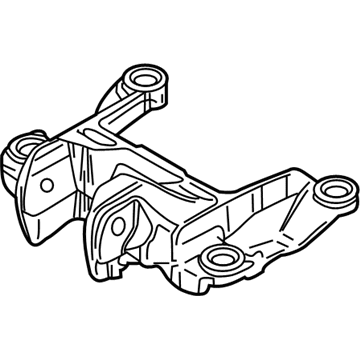

420-599-288
Rear Mount
$266.67 $190.40
1
Add To Cart

14
N-909-686-02
Rear Mount Screw
$0.96 $0.61
1
Add To Cart

15
N-106-665-01
Rear Mount Bolt
$2.26 $1.45
1
Add To Cart

16
WHT-002-005
Rear Mount Nut
$2.97 $1.89
1
Add To Cart
