What components does the Fuel Pump delivery unit include, and how to remove and install it on Audi TT Quattro?

The fuel delivery unit includes the fuel pump and fuel level sensor. The procedure and illustrations apply to the primary fuel pump. All-wheel drive vehicles also have a secondary fuel pump at the left side of the fuel tank. Removal and installation are similar. For starters, disconnect the negative terminal battery ground strap or negative battery cable. Make sure you have the anti-theft radio code handy for later use. For coup models, the rear seat bottom should be removed, while for roadster, the rear trim should be removed. Fuel delivery a unit cover should also be removed. The black fuel supply line, blue fuel return line and the harness connector for the fuel delivery unit are disconnected by pressing the release buttons on the retaining collar. Using special tool 3217, loosen the retaining ring on the fuel delivery unit before removing it. Then, carefully pull the fuel delivery unit and seal out of the fuel tank opening, being careful not to bend the fuel gauge sensor. For all-wheel-drive vehicles, disconnected the connector from the harness in the fuel tank. Then press the release button of the hose coupling and disengage the retaining strap and wire from the fuel pump. Finally, empty the fuel from the delivery unit into a suitable container. Once the fuel delivery unit has been removed, install the connectors and strap in the reverse order and ensure that the strap engages with the side of the fuel pump. When refitting the fuel delivery unit, new seals must be used. The seals must be dry. The arrows on the unit and the fuel tank must be aligned. A light hand-tightening of the retaining ring is adequate. In the case of front-wheel drive vehicles, the same procedure may be followed, provided the seal is new and the fuel level sensor is not bent. Ultimately, using special tool 3217, tighten the fuel delivery unit retaining ring. Next, install the fuel supply line and return line without exchanging them. Verify that the lines are secured. Subsequently, reinstall the rear seat or trim. Finally, hook up the negative strap to the battery negative terminal.

What happens if the secondary Fuel Pump is faulty with a full fuel tank on Audi TT Quattro?

The primary fuel pump makes a pressure stream that is forced through a jet into the secondary fuel pump. As a result, fuel in the left side of the tank is pulled into the right side. In such a scenario, the fuel gauge may indicate that the tank is nearly full, the vehicle may fail to run. This fault could leave up to 15 liters (4 gallons) of fuel locked on the left side. Thus failing to pump it through the primary fuel pump. In the event your vehicle is unwilling to run due to lack of fuel but the tank is about full, check the primary fuel pump. When the primary fuel pump operates but does not pump any fuel, add approximately 5 liters (1 gallon) of fuel into the tank and start the engine. In case of engine starting, replace secondary fuel pump.

Genuine Audi TT Quattro Fuel Pump

Gas Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Fuel Pumps found

View related parts

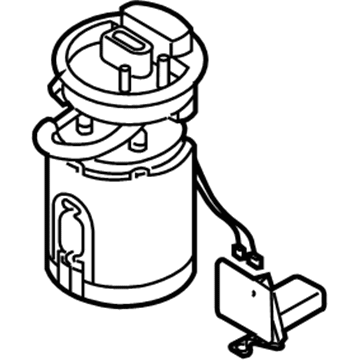

Audi TT Quattro Fuel Pump Assembly Part Number: 1K0-919-051-DB
$290.49 MSRP: $406.85
You Save: $116.36 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit; Fuel Pump
- Replaces: 1K0-919-051-AQ, 1K0-919-051-CL, 1K0-919-051-BH
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008-2009 Audi TT Quattro | Base | 4 Cyl 2.0 L GAS, 6 Cyl 3.2 L GAS
View related parts
Audi TT Quattro Fuel Pump Assembly Part Number: 1K0-919-051-AR
$318.61 MSRP: $446.24
You Save: $127.63 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit; Fuel Pump
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008 Audi TT Quattro | Base | 6 Cyl 3.2 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 8L0-919-051-N
$392.70 MSRP: $550.00
You Save: $157.30 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2003-2006 Audi TT Quattro | Base, Special Edition | 4 Cyl 1.8 L GAS, 6 Cyl 3.2 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 8L9-919-051-J
$397.46 MSRP: $556.67
You Save: $159.21 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2002-2006 Audi TT Quattro | ALMS Edition, Base, Special Edition | 4 Cyl 1.8 L GAS, 6 Cyl 3.2 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 8L0-919-051-J
$421.26 MSRP: $590.00
You Save: $168.74 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000-2002 Audi TT Quattro | ALMS Edition, Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 06L-127-027-C
$342.11 MSRP: $479.15
You Save: $137.04 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: 06L-127-027, 06L-127-027-A, 06L-127-027-B
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2016-2023 Audi TT Quattro | Base | 4 Cyl 2.0 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 8L9-919-051-G
$314.87 MSRP: $441.00
You Save: $126.13 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000-2002 Audi TT Quattro | ALMS Edition, Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Quattro Fuel Pump Assembly Part Number: 1K0-919-051-DE
$318.61 MSRP: $446.24
You Save: $127.63 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit; Fuel Pump
- Replaces: 1K0-919-051-BK, 1K0-919-051-BM, 1K0-919-051-CN
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008-2015 Audi TT Quattro | Base, Premium Plus, Prestige | 4 Cyl 2.0 L GAS, 6 Cyl 3.2 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 5Q0-919-087-AQ
$290.49 MSRP: $406.85
You Save: $116.36 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module; Fuel Pump Assembly
- Replaces: 5Q0-919-087-R, 5Q0-919-087-AH
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2016-2023 Audi TT Quattro | Base | 4 Cyl 2.0 L GAS
View related parts
Audi TT Quattro Fuel Pump Assembly Part Number: 1K0-919-051-DD
$327.24 MSRP: $458.31
You Save: $131.07 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Unit; Fuel Pump
- Replaces: 1K0-919-051-BL, 1K0-919-051-BJ, 1K0-919-051-CM
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008-2009 Audi TT Quattro | Base | 6 Cyl 3.2 L GAS
View related parts
Audi TT Quattro Fuel Pump Part Number: 06J-127-025-L
$678.30 MSRP: $876.92
You Save: $198.62 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: 06J-127-025-F, 06J-127-025-G, 06J-127-025-J, 06J-127-025-K
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2011-2015 Audi TT Quattro | Base, Premium Plus, Prestige | 4 Cyl 2.0 L GAS

Audi TT Quattro Fuel Pump

The Audi TT Quattro Fuel Pump provides a steady flow of pressurized gasoline, which allows the turbocharged coupe to start immediately and still retain sharp throttle response all through the rev range. The rock-solid reliability of this Audi part keeps it wet in the tank, where the cool fuel cools its electric motor, resulting in less heat, less wear, and a service life of hundreds of thousands of spirited miles that many of its owners have given it. It provides 40 to 60 psi that modern multiport injectors require, but Audi engineers have made it large enough to accommodate factory power upgrades that can be found in first generation through third generation TT Quattro trims, between the 1.8 liter and 3.2 liter VR6 engines. An integrated level sending float feeds precise data to the digital gauge and makes one small module both a delivery system and a real-time fuel monitor that enhances safety by eliminating the occurrence of drivers being taken aback by empty tanks. Since the same electrical connector and mounting ring take a common design, the same Fuel Pump can be interchanged between coupe and roadster bodies and across model years, making maintenance easier among those enthusiasts who can swap their switches and mount the same Fuel Pump. The benefits of rapid priming include reduced crank times and smoother idle, which also enhance catalytic converter light-off and overall emissions, making Audi vehicles responsive on city streets and even open highways. The silent whir, when the key is on, serves as a diagnostic warning to drivers as it provides an easy audible signal that the pressure has been attained on the rail. Installing corrosion-resistant housings, self-lubricating bushings, an internal check valve, and a solid Fuel Pump gear set ensures that the Fuel Pump shines in a crowded parts market, making Audi one of the few performance- and efficiency-wise parts suppliers without jeopardizing passenger safety, yet remaining easily compatible with every TT Quattro ever produced to date.

Choose original equipment manufacturer Fuel Pump for great performance and strong durability. They use Audi's official craftsmanship and high-grade materials, and meet strict quality standards. Are you looking for quality Fuel Pump at a good price? Come to our online store. We carry a wide range of genuine parts for your Audi TT Quattro and the prices are competitive. Each part comes with the manufacturer's warranty. You can install with confidence and get steady results. Over time, you'll save money and avoid hassle. Keep your maintenance simple and protect your vehicle with OEM parts. Get the quality your TT Quattro needs now.

Audi TT Quattro Fuel Pump Parts and Q&A

Fuel Pump
8L0-919-051-J
Q: What components does the Fuel Pump delivery unit include, and how to remove and install it on Audi TT Quattro?
A:
The fuel delivery unit includes the fuel pump and fuel level sensor. The procedure and illustrations apply to the primary fuel pump. All-wheel drive vehicles also have a secondary fuel pump at the left side of the fuel tank. Removal and installation are similar. For starters, disconnect the negative terminal battery ground strap or negative battery cable. Make sure you have the anti-theft radio code handy for later use. For coup models, the rear seat bottom should be removed, while for roadster, the rear trim should be removed. Fuel delivery a unit cover should also be removed. The black fuel supply line, blue fuel return line and the harness connector for the fuel delivery unit are disconnected by pressing the release buttons on the retaining collar. Using special tool 3217, loosen the retaining ring on the fuel delivery unit before removing it. Then, carefully pull the fuel delivery unit and seal out of the fuel tank opening, being careful not to bend the fuel gauge sensor. For all-wheel-drive vehicles, disconnected the connector from the harness in the fuel tank. Then press the release button of the hose coupling and disengage the retaining strap and wire from the fuel pump. Finally, empty the fuel from the delivery unit into a suitable container. Once the fuel delivery unit has been removed, install the connectors and strap in the reverse order and ensure that the strap engages with the side of the fuel pump. When refitting the fuel delivery unit, new seals must be used. The seals must be dry. The arrows on the unit and the fuel tank must be aligned. A light hand-tightening of the retaining ring is adequate. In the case of front-wheel drive vehicles, the same procedure may be followed, provided the seal is new and the fuel level sensor is not bent. Ultimately, using special tool 3217, tighten the fuel delivery unit retaining ring. Next, install the fuel supply line and return line without exchanging them. Verify that the lines are secured. Subsequently, reinstall the rear seat or trim. Finally, hook up the negative strap to the battery negative terminal.
Fuel Pump
8L0-919-051-N
Q: What happens if the secondary Fuel Pump is faulty with a full fuel tank on Audi TT Quattro?
A:
The primary fuel pump makes a pressure stream that is forced through a jet into the secondary fuel pump. As a result, fuel in the left side of the tank is pulled into the right side. In such a scenario, the fuel gauge may indicate that the tank is nearly full, the vehicle may fail to run. This fault could leave up to 15 liters (4 gallons) of fuel locked on the left side. Thus failing to pump it through the primary fuel pump. In the event your vehicle is unwilling to run due to lack of fuel but the tank is about full, check the primary fuel pump. When the primary fuel pump operates but does not pump any fuel, add approximately 5 liters (1 gallon) of fuel into the tank and start the engine. In case of engine starting, replace secondary fuel pump.
