What should you note before removing the old Instrument Cluster for replacement on Audi TT?

If replacing the instrument cluster, be sure to note the mileage indicated in the old cluster before removal. For ease of illustration, the steering wheel is not shown in the following illustrations, and it is not necessary to remove the steering wheel to remove the instrument cluster. Release the steering wheel position lock, pull the steering wheel out completely, and lock it again in the lowest position. Remove the left side under-dash panel. Remove the instrument cluster mounting screws. Pull out the cluster from the bottom to disengage the upper mounting clips, pulling it out far enough to access the harness connectors on the rear. Disconnect the harness connectors at the rear of the instrument cluster using a pry lever to release the harness connector retaining levers. Remove cable ties from the back of the instrument cluster, release the harness connector retaining levers, and remove the instrument cluster. Installation is the reverse of removal, and after completing installation, check the function of the instrument cluster. Due to the large number of instrument cluster variations, it is advisable to order a replacement cluster using the part number on the back of the cluster. Replacement clusters can have the odometer mileage adjusted to match the mileage of the original cluster, and because of the specialized nature of these repairs, servicing should be done by an authorized Audi dealer or qualified independent repair shop. If the instrument cluster has been replaced due to a fault and a functional check does not display a malfunction, the instrument cluster will need to be coded with a compatible scan tool or computer program.

Genuine Audi TT Instrument Cluster

Speedometer Instrument Cluster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Instrument Clusters found

View related parts
Audi TT Instrument Cluster Part Number: 8N1-920-980-E
$1174.80 MSRP: $1518.81
You Save: $344.01 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8N1-920-980-AX, 8N1-920-980-EX
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2003-2006 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8N1-920-980
$1209.04 MSRP: $1563.08
You Save: $354.04 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8N1-920-980-X
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2002 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8J0-920-990-F
$1380.40 MSRP: $1784.62
You Save: $404.22 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8J0-920-990-FX
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008-2009 Audi TT | Base | 4 Cyl 2.0 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8J0-920-990-E
$1475.60 MSRP: $1907.69
You Save: $432.09 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8J0-920-990-EX, 8J0-920-990-CX
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008 Audi TT | Base | 4 Cyl 2.0 L GAS
View related parts
Audi TT Instrument Panel Part Number: 8N1-857-003-A-24A
$1624.35 MSRP: $1950.00
You Save: $325.65 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dashboard
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000-2006 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Panel Part Number: 8J1-857-001-C-24A
$1903.99 MSRP: $2285.70
You Save: $381.71 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dashboard
- Replaces: 8J1-857-001-B-24A
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008-2009 Audi TT | Base | 4 Cyl 2.0 L GAS
View related parts
Audi TT Instrument Cluster Screw Part Number: N-014-155-1
$1.64 MSRP: $2.56
You Save: $0.92 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screw
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000-2006 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8N1-920-930-J
$1209.04 MSRP: $1563.08
You Save: $354.04 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8N1-920-930-JX
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2001 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8N1-919-930-CX
$819.72 MSRP: $1055.00
You Save: $235.28 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8N1-919-930-B
$1209.04 MSRP: $1563.08
You Save: $354.04 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8N1-919-930-BX
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8J0-920-990-AX
$1325.77 MSRP: $1709.23
You Save: $383.46 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2008-2009 Audi TT | Base | 4 Cyl 2.0 L GAS
View related parts
Audi TT Instrument Panel Part Number: 8N1-857-003-A-6H7
$1426.10 MSRP: $1712.00
You Save: $285.90 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dashboard
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2003-2006 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8N1-920-930-E
Product Specifications
- Other Name: Combination Instrument
- Replaces: 8N1-920-930-EX
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000-2001 Audi TT | Base | 4 Cyl 1.8 L GAS
View related parts
Audi TT Instrument Cluster Part Number: 8N1-920-930-DX
Product Specifications
- Other Name: Combination Instrument
- Warranty: This genuine part is guaranteed by Audi's factory warranty.
Fits the following Vehicles:
- 2000-2001 Audi TT | Base | 4 Cyl 1.8 L GAS

Audi TT Instrument Cluster

Audi TT Instrument Cluster provides the driver with instant status information required to drive safely and with knowledge. The Instrument Cluster, which is positioned directly behind the steering wheel, is a cluster of gauges and other visual alerts to ensure that the driver can monitor the conditions of the vehicle in just one glance. A speedometer displays the current velocity, a tachometer indicates engine revolutions, and a fuel gauge indicates the amount of remaining gasoline. Surrounding these main dials are various warning lights that light up to indicate seat belt status, exterior lighting operation, or other system conditions that might require attention. Having the readouts of these in a single focal point, the Audi dashboard provides minimal distraction and allows the driver to be conscious of the speed, engine performance, and fuel level without taking their eyes off the road. The Instrument Cluster is based on well-labeled analog or digital displays, with colored indicators that are only activated under certain conditions or when malfunctions are detected. An ongoing feedback of performance characteristics allows prompt responses, like easing throttle when the engine speed increases or scheduling fueling before the tank fills. In each Audi TT cabin, the Instrument Cluster is the focal point of real-time operating information, and the proper functioning of the Instrument Cluster is crucial to general driving confidence. All Audi cockpits use backlit symbols to ensure legibility during the day or night. Frequently checking the Audi gauges and indicator lamps will help the TT driver be aware of the mechanical conditions and exterior safety options.

Choose original equipment manufacturer Instrument Cluster for great performance and strong durability. They use Audi's official craftsmanship and high-grade materials, and meet strict quality standards. Are you looking for quality Instrument Cluster at a good price? Come to our online store. We carry a wide range of genuine parts for your Audi TT and the prices are competitive. Each part comes with the manufacturer's warranty. You can install with confidence and get steady results. Over time, you'll save money and avoid hassle. Keep your maintenance simple and protect your vehicle with OEM parts. Get the quality your TT needs now.

Audi TT Instrument Cluster Parts and Q&A

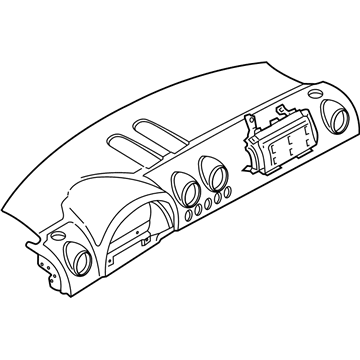

Instrument Panel
8N1-857-003-A-24A
Q:
What should you note before removing the old Instrument Cluster for replacement on Audi TT?
A:
If replacing the instrument cluster, be sure to note the mileage indicated in the old cluster before removal. For ease of illustration, the steering wheel is not shown in the following illustrations, and it is not necessary to remove the steering wheel to remove the instrument cluster. Release the steering wheel position lock, pull the steering wheel out completely, and lock it again in the lowest position. Remove the left side under-dash panel. Remove the instrument cluster mounting screws. Pull out the cluster from the bottom to disengage the upper mounting clips, pulling it out far enough to access the harness connectors on the rear. Disconnect the harness connectors at the rear of the instrument cluster using a pry lever to release the harness connector retaining levers. Remove cable ties from the back of the instrument cluster, release the harness connector retaining levers, and remove the instrument cluster. Installation is the reverse of removal, and after completing installation, check the function of the instrument cluster. Due to the large number of instrument cluster variations, it is advisable to order a replacement cluster using the part number on the back of the cluster. Replacement clusters can have the odometer mileage adjusted to match the mileage of the original cluster, and because of the specialized nature of these repairs, servicing should be done by an authorized Audi dealer or qualified independent repair shop. If the instrument cluster has been replaced due to a fault and a functional check does not display a malfunction, the instrument cluster will need to be coded with a compatible scan tool or computer program.
